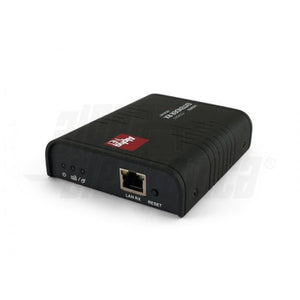

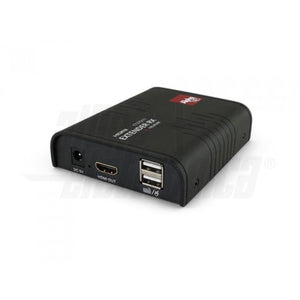

Additional receiver for the CT375 / 11 hdmi over ip KVM extender .
By connecting multiple over IP receivers to the same gigabit network, it is possible to send the source signal to as many TV monitors. The signal sent will be at an HDMI 1080p full HD 12bit resolution without signal loss up to a maximum distance of 120mt . The bandwidth is up to 10.2Gbps.
This series of CT375 / 11 (R) extenders is used in particular when a station (workstation or fixed PC) is far from the workstation equipped with a monitor.
The pair supports the KVM function that allows you to connect a keyboard and mouse to the receiver in order to remotely control the PC.
The use of KVM extenders is increasingly widespread and follows the new layout of the most recent offices, where the personal desk has been replaced by shared workstations.
Each employee / collaborator can use any workstation , log in and start working.
The video output signal from the PC is connected to the transmitter, just as the USB cable carries data for the keyboard and mouse.
The exdenter over ip can work in two modes:

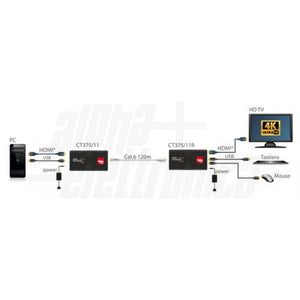

- Point-to -Point Connection : The transmitter is connected directly to the receiver via a cat.6 lan cable
- Point-to-Multipoint Connection: The transmitter is connected to a gigabit switch within an existing LAN (Cat.6) network and multiple receivers. In this case it is necessary to purchase the additional receivers.

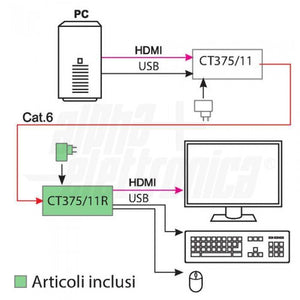

When, as for the example shown on the side, the N stations are greater than one, it will be necessary to use more CT375 / 11R receivers.
The maximum number of stations that can be connected depends on the bandwidth of the LAN to which the CT375 / 11 is connected.
PLEASE NOTE: fundamental requirements for correct operation are the use of cat.6 ethernet cables and the presence of a GIGABIT 10/100/1000 Switch with support for IGMP Multicast. Approximate price for these switches 60 - 70 euros
The hdmi extender is powered (two power supplies included), this allows the transmitter and receiver to send the amplified and equalized signal to obtain the best performance without signal loss.
Specifications
- Plug-and-play module, RX
- Extension on single CAT.6 IEEE-568B cable
- Signal transmission distance:
- max 120m (1080p 12bit), using CAT.6 cable
HDMI specifications
- Bluray and HD DVD in Full HD (1080p)
- Bandwidth up to 10.2Gbps
Caution
- The Gigabit Ethernet switch must support IGMP multicast for the devices to function properly.
- Plug and play installation, no drivers or software required
Package contents
1 x Receiver
1 x 5Vdc 1A power supplies (conn. 5,5-2,1mm positive center)
1 x USB cable from type A plug to type A plug
* Maximum distance of the section defined by the Ethernet standard 802.3ab 1000Base-T (TX).
| Distance Extender |
120 m |
| Technology |
Over IP (LAN) |
| Extender type |
HDMI® |
