The hdmi extenders on ethernet cable allow you to increase the maximum distance to carry the high definition video signal (4K) that comes out from the hdmi port of a source such as blu-ray players, computers but above all for sky HD decoders to a tv monitor.

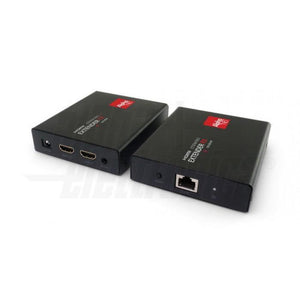

The CT374 / 10/2 extender, TOP OF THE RANGE model, is suitable for extending the length of HDMI cables using a single Cat.6 ethernet cable ( IEEE-568B connection standard) and consists of a transmitter and a receiver. In this way it is possible to transmit up to 70mt by sending a 4K signal at 60hz without signal degradation. It is the ideal solution for home use and show rooms, security applications, conference rooms, schools and training and video surveillance environments.
It supports HDR (High Dynamic Range) technology which allows, connected to devices that support the same technology, to watch content with a range of colors closer to the reality perceived by the human eye.
The hdmi extender also implements an hdmi loop-out which allows the hdmi signal to be split directly from the transmitter so that a monitor can be connected close to the video source. In this way it will be possible to extend the signal via cat.6 cable and divide the signal without having to resort to other devices, making installation quicker and cleaner.
The hdmi extender also supports remote control of the remote control signal via an infrared receiver and transmitter. This function is very convenient in situations where it is necessary to control the source remotely. The signal is sent on the LAN cable and received by the player (DVD player, satellite decoder, sky etc.)
PLEASE NOTE:
The maximum distance supported depends on the resolution of the signal and above all on the quality of the ethernet cable used.
It is recommended to use a cable of minimum category cat.6 in pure copper.
Technical specifications
- Pair of plug-and-play modules, TX + RX
- Extension on single CAT.6 IEEE-568B cable
- HDMI 2.0 - HDCP 2.2
- Supported Resolutions:
480i @ 60Hz, 480p @ 60Hz, 576i @ 60Hz, 576p @ 60Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 30Hz, 1080p @ 50 / 60Hz, 4K @ 30hz, 4K @ 60Hz

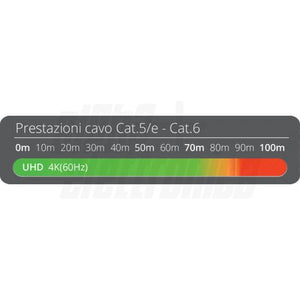

- Signal transmission distance:
- max 70m (480i @ 60Hz, 480p @ 60Hz, 576i @ 60Hz, 576p @ 60Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 30Hz, 1080p @ 50 / 60Hz, 4K @ 30hz, 4K @ 60Hz)
using Cat.5e / 6 cable.
- Supports transmission of IR signals, 20-60kHz
HDMI specifications
- 4K video up to 60Hz
- HDR compatible (HDR10 and HLG), does not support Dolby Vision HDR
- Bandwidth up to 18Gbps total

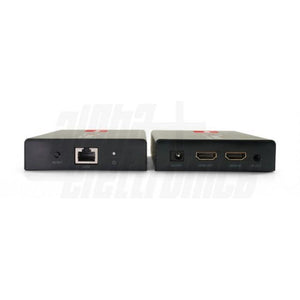

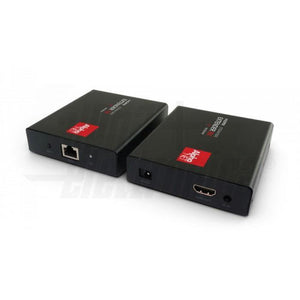

Connections
Transmitter
- HDMI connector (Input)
- HDMI connector (Out)
- RJ45 connector
- Jack 3.5 connector - IR output
Receiver
- HDMI connector (Out)
- RJ45 connector
- Jack 3.5 connector - IR input
Caution
- Plug and play installation, no drivers or software required
Package contents
1x Transmitter
1x Receiver
1x 12Vdc 1A power supply (conn. 5,5-2,1mm central positive)
1x IR receiver cable
1x IR transmitter cable
Distance Extender |
70 m |
Technology |
Standard 1xCat. 5e / 6 |
Extender type |
HDMI® |
