USB socket Matix 5V 3A 15W Compatible Bticino AM4285 1 Module, White
📐 Bticino Matix series, white color │ USB-A 5V 3A, 15W │ 100–240 Vac input, screw terminals — 🔧 Installation difficulty: 3/5 │ 🎯 Ideal for: hotel bedside units, offices and homes with Bticino Matix systems

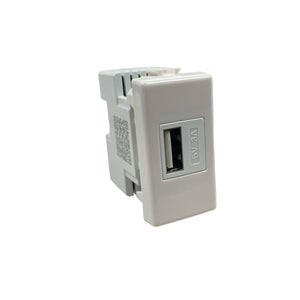

Bticino Matix compatible USB-A socket, 5V 3A
AM4285 is the code for the original Matix USB socket: this compatible USB-A socket replaces it in the white support and delivers 5V up to 3A for smartphones, tablets and accessories. It is the version for those who use USB-A cables; for fast charging of USB-C phones, a socket with Power Delivery is recommended. It is compatible, not original Bticino.
Who chooses it
- 🏨 Hotels and B&Bs with Matix systems that want bedside charging.
- 🏢 Offices with shared workstations and meeting rooms.
- 🏠 Homes with a Matix system to be upgraded without changing the faceplates.
- ❌ It is not the right choice for fast charging of USB-C smartphones.
Technical analysis and advantages
- 🔌 Instead of the AM4285: complete white socket from one module for Matix supports.
- ⚡ USB-A 5V up to 3A (15W): six times the 500 mA of a USB 2.0 port, three times a 1A charger.
- 📱 For all USB-A cables: smartphones, tablets, headphones, smartwatches.
- 🛡️ Protection class II: protection against overload, overtemperature and short circuit.
- ⚙️ Stabilized output: constant voltage switching power supply.

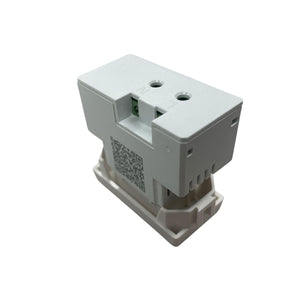

- 🔧 Screw connection: terminals for cables up to 1.5 mm² on the 230V line.

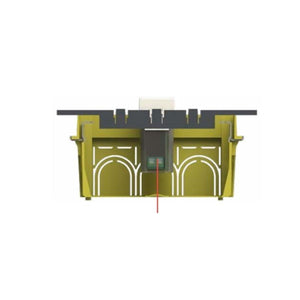

- 📏 One module in a 503 box: it sits alongside RJ45 and HDMI Matix in the same faceplate.
Technical data sheet
| Manufacturer | JOIN, K-Wall line (compatible, not original Bticino) |
| Compatible series / color | Bticino Matix — replaces code AM4285 / white |
| Port | 1× USB-A |
| Output | 5V / 3000 mA (15W) |
| Input voltage / frequency | 100–240 Vac (-10% / +6%) / 50–60 Hz |
| Technology / regulation | Switching / constant voltage, passive cooling |
| Protection class / protection | II / IP20 (indoor use only) |
| Protections | Overload, overtemperature, short circuit |
| Operating temperature | 0 / 30 °C |
| Connection / cable cross-section | Screw terminals / max 1.5 mm² |

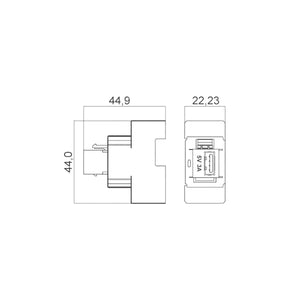

| Dimensions / modules | 44.9 × 22.23 × 44 mm / 1 module, 503 box |
| Body material | Plastic |
| SKU / EAN | MATIX/USB-A — 8052461821733 |
⚠️ Expert Advice:
First check that the system is Bticino Matix (AM codes), not MatixGO. Unlike RJ45 and HDMI sockets, this one has a power supply connected to the 230V: disconnect the line of the box you are working on from the panel, check with a voltage tester that there is no voltage and only then connect the conductors. If you are not experienced, call an electrician.
Complete your project
- 🔗 Bticino Matix AM5979C6A compatible RJ45 socket — wired network in the same faceplate.
- 🔗 Bticino Matix AM4284 compatible HDMI socket — for wall-mounted TV.
Frequently asked questions
Does the USB-A socket charge the smartphone quickly?
It delivers 5V up to 3A, so more than an old 1A charger, but it does not support Power Delivery fast charging. For recent USB-C phones with fast charging, a USB-C socket with Power Delivery is recommended.
Can I replace the original Bticino Matix AM4285 USB socket with this one?
Yes: it mounts on the same Matix support, occupies one module and connects to the 230V line with screw terminals. Before replacing it, disconnect the power from the panel and photograph the existing connection.
Do I need an electrician to install the USB wall socket?
The connection is made on the screw terminals of the 230V line, with cables up to 1.5 mm², like a normal electrical socket. Always disconnect the power from the panel before intervening and, if you have no experience, contact a qualified electrician.
Package contents
📦 Complete USB-A socket, ready to mount
Warranty and safety
✅ Protection class II, protection against overload, overtemperature and short circuit. 📜 2-year legal warranty (Legislative Decree 170/2021). ⚠️ IP20, indoor use only; operating temperature up to 30 °C. Connection to the 230V network must be carried out with the system powered off. Compatible product, not original Bticino: Bticino and Matix are trademarks of their respective owners. Before purchasing, check the series.
Shipping from Catania. Technical assistance for USB sockets and domestic electrical systems.
