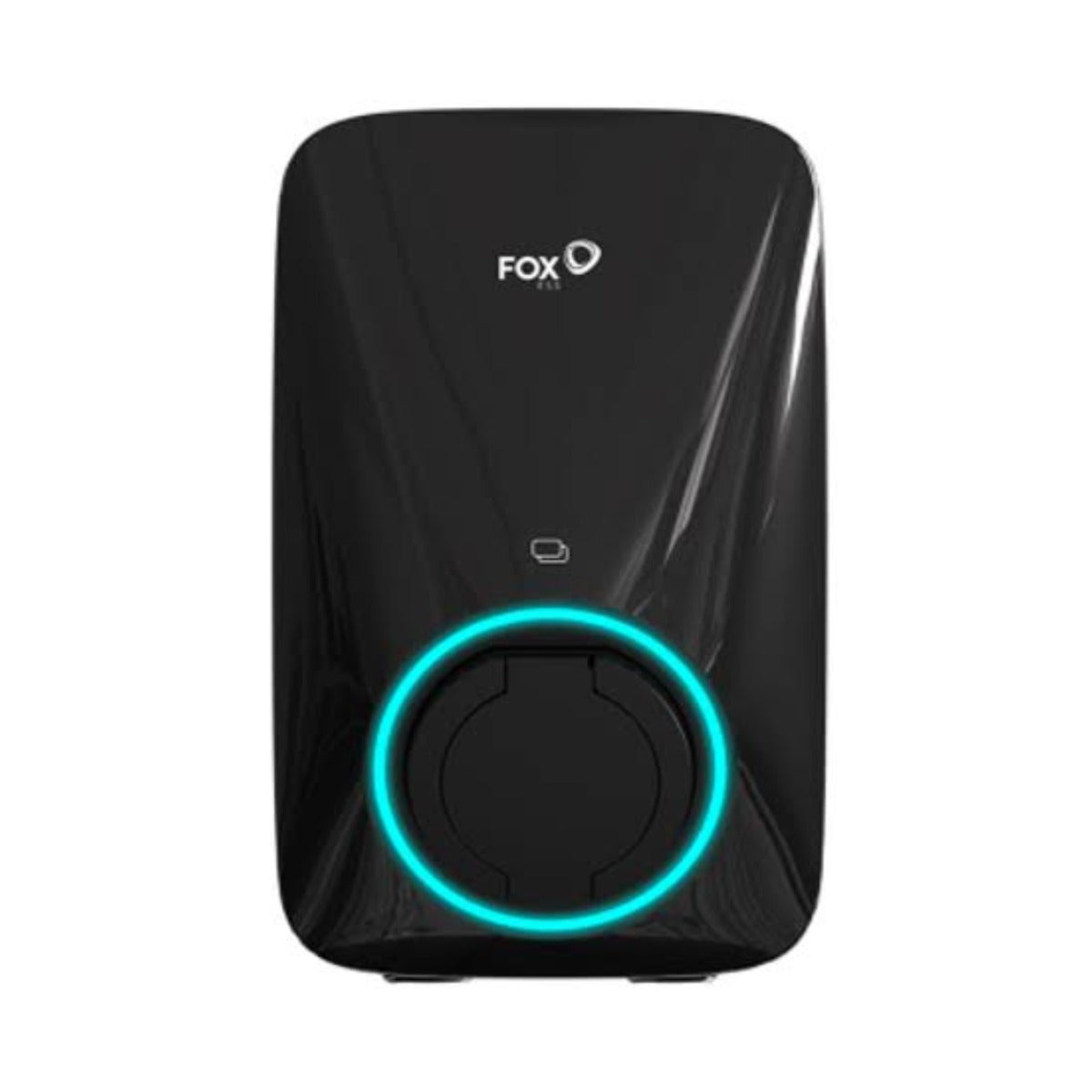

FoxESS EV Charging Station 7.3 kW Single-Phase Type 2 Socket WiFi Bluetooth RFID Black
📐 7.3 kW single-phase (230 V, 32 A) │ Type 2 socket — cable not included │ IP54 / IK08 — 🔧 Installation difficulty: 3/5 │ 🎯 Ideal for: private garages and parking spaces, those who already have a Type 2 cable or charge different vehicles
✅ Eligible for the 2026 Home Charging Station Bonus — Available now
The FoxESS A7300S1-E model is on the GSE list of charging devices with Dynamic Load Management (October 2026 update), a requirement to access the MIMIT grant.
- 💶 80% grant on purchase and installation: up to €1,500 for resident individuals, up to €8,000 for condominiums
- 📅 Installation completed between June 26 and December 31, 2026
- 📝 Application on the Invitalia platform by January 31, 2027, first-come, first-served until funds run out
The bonus cannot be claimed by companies and sole traders and cannot be combined with other incentives for the same expenses. The model must be on the GSE list valid on the day of application: download the list updated at the time of submission.
FoxESS 7.3 kW Wallbox with Type 2 socket: the charging station without a fixed cable
Those who already have a Type 2 cable, or need to charge cars with charging ports in different locations, do not need a fixed cable hanging on the wall: they need a socket. The A7300S1-E1 is the version with a Type 2 socket in the FoxESS A series: 7.3 kW at 230 V, app control via Wi-Fi or Bluetooth, and RFID card start. The charging cable is not included and must be purchased separately; if you prefer the integrated cable, there is the A7300P1-E1-S version with a 6 m cable.
Technical analysis and advantages
- 🔌 Type 2 socket (IEC 62196-2): accepts any Mode 3 Type 2 cable of the length you need; if the cable wears out, you only replace that.
- ⚡ 7.3 kW on a 230 V single-phase line with 32 A: about twice the 3.7 kW of a 16 A home socket charge.
- 📱 FoxESS app control via 2.4 GHz Wi-Fi or Bluetooth, even where the home signal does not reach the garage.
- 🔐 Three start modes: Plug & Charge, Mifare ISO/IEC 14443 A RFID card, and app.
- 🛡️ Integrated protections: 6 mA DC residual current detection, overcurrent, grounding, overvoltage, and overtemperature. IP54 and IK08, operating from -25 °C to +50 °C.
Technical specifications
| Model | A7300S1-E1 (A-Series, socket version) |
| Charging power | 7.3 kW |
| Power supply | Single-phase L/N/PE — 230 Vac ±20% — 50/60 Hz |
| Maximum current | 32 A |
| Connector | Type 2 socket (IEC 62196-2) — charging cable not included |
| Start modes | Plug & Charge / RFID card / app |
| RFID reader | Mifare ISO/IEC 14443 A |
| Communication | Bluetooth + 2.4 GHz Wi-Fi |
| OCPP / 4G / LAN | Not present |
| Protection rating | IP54 / IK08 |
| Protections | 6 mA DC residual current, overcurrent, grounding, overvoltage, overtemperature |
| Operating temperature | -25 °C / +50 °C |
| Humidity / altitude | 5-95% non-condensing / up to 2000 m |
| Installation | Wall or pole mounted |
| Color | Black |
| Certifications | CE / UKCA, RoHS, EN/IEC 61851-1:2019 |
| Home Charging Station Bonus 2026 | Yes — A7300S1-E model on the GSE list (GDC), October 2026 |
| SKU | FE-A7300S1-E1 |
| EAN | — |
🧠 Expert Advice:
With the socket version, you choose the cable, and that choice determines the actual power. In the store, I always recommend a 32 A Mode 3 Type 2–Type 2 cable: if you get a 16 A one, the charging will be limited to half power, because the charging station reads the cable's capacity and adjusts accordingly. For the length, 5 m is almost always enough if the charging station is in front of the charging port; if one day you switch to three-phase, a 32 A three-phase cable also works on this single-phase charging station, so you can keep it.
Complete your installation
- 🔗 FoxESS Type 2 22 kW three-phase 5 m charging cable — 32 A, full power charging today and valid on a future three-phase wallbox.
- 🔗 FoxESS Type 2 7 kW single-phase 5 m charging cable — the most economical option if you stay on single-phase.
- 🔗 Eastron SDM120CT meter with 100A CT or FoxESS DDSU666 meter — for dynamic load balancing via RS485.
Frequently Asked Questions
Is this charging station eligible for the 2026 Home Charging Station Bonus?
Yes. The A7300S1-E model is on the GSE list of charging devices equipped with Dynamic Load Management (October 2026 update). The grant covers 80% of the purchase and installation costs, up to €1,500 for individuals, for installations completed between June 26 and December 31, 2026. The application is submitted on Invitalia by January 31, 2027, and is first-come, first-served: it is advisable to submit it as soon as the installation is completed.
Is the charging cable included?
No. This version has the Type 2 socket on the charging station and requires a Mode 3 Type 2–Type 2 cable to be purchased separately. To charge at 7.3 kW, the cable must be 32 A: with a 16 A cable, the charging station automatically limits the current and the power drops to about 3.7 kW.
Can I install a wallbox with a Type 2 socket in Italy?
Yes, but with one extra check. The national conditions of the EN 62196-2 standard provide for sockets with shutters (IPXXD rating) in Italy when they are accessible to ordinary people, such as in a home garage. Before installation, check with the installer the conformity of the socket to the installation location according to CEI 64-8 section 722.
What is the difference with the A7300P1-E1-S?
Same power and same basic electronics. The P1-E1-S has the 6 m Type 2 cable fixed to the charging station; the S1-E1 has the socket and leaves the choice of cable free, useful if you charge different cars or already have a cable.
Package contents
📦 1 FoxESS 7.3 kW charging station with Type 2 socket · backplate and mounting bracket · 2 RFID cards · wall plugs, fixing screws, and tubular terminals. Charging cable not included.
Warranty and safety
✅ CE / UKCA, RoHS, compliant with EN/IEC 61851-1:2019. 📜 2-year legal warranty (Legislative Decree 170/2021). ⚠️ Installation reserved for qualified personnel according to CEI 64-8 section 722; an external residual current circuit breaker is required based on local regulations.
Shipping from Catania. Technical assistance for app configuration, RFID cards, and Type 2 cable selection.
