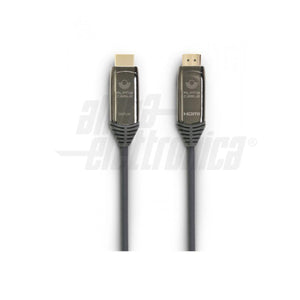

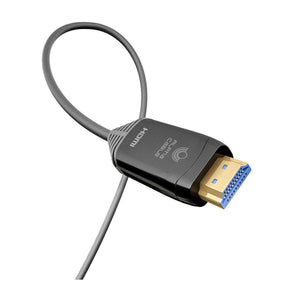

4K fiber optic HDMI cable
AOC active UHD 4K high-speed Ethernet fiber optic HDMI cable - Designed to guarantee superior performance in audio-video transmissions, the Alpha Elettronica AOC cable represents the optimal solution for professional environments where signal quality and transmission distance are fundamental.
Advanced Technical Features

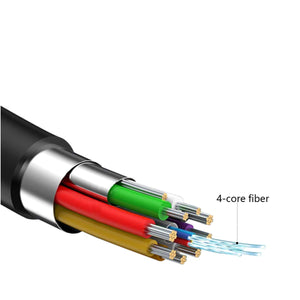

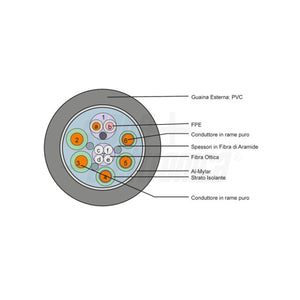

🔹 High Transmission Capacity : The cable uses an advanced combination of optical fibers and copper conductors to carry signals up to 100 meters without quality loss or EMI/RF interference.
🔹 High Resolution Support : Compatible with resolutions up to 4K UHD, fully supporting 1080p, 3D, deep color and other advanced HDMI 2.0 standards with a bandwidth of up to 18Gbps.
🔹 Installation Versatility : Thanks to its light and flexible structure, it is ideal for installations in narrow spaces and extended distances, such as conference rooms, classrooms, and illuminated signs.
🔹 Plug-and-Play with Integrated Power : Requires no external power thanks to integrated copper power cables, making installation simple and free from additional complications.

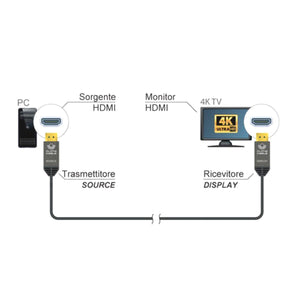

🔹 Unidirectional Design : The connectors are clearly labeled with "source" and "display" to ensure a correct and efficient connection between devices.
Ideal Applications
This cable is particularly suitable for technicians specializing in audio-video transmissions, electricians, and companies that need reliable solutions for the distribution of high definition digital signals over long distances . Its applications extend to conference rooms, control rooms, digital signage and many other professional situations where signal quality and integrity are critical.
Technical Specifications and Recommendations for Use

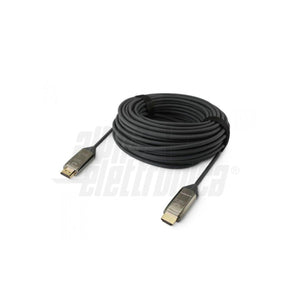

The cable is available in different lengths, from 10 to 50 meters, to adapt to various types of installations. It is important to check the correct orientation of the connectors during installation to make the most of the cable's potential. Furthermore, compliance with HDCP 2.2 and HDMI 2.0 standards guarantees compatibility with the latest audiovisual technologies.
Characteristics
| CPR application
|
Mobile installation |
| Cable colour
|
Grey |
| 3D compatible |
Yes |
| Connector body
|
Metallic |
| Cable diameter
|
5 mm |
| Contact finish
|
Gold |
| Cable sheath
|
PVC |
| Interface
|
HDMI® |
| Cable length
|
10, 20, 30, 40, 50 m |
| Color depth
|
16 bits/channel |
| Maximum resolution
|
2160p (4K@60fps) |
| Supported standards
|
ARC, CEC, HDR |
| Technology
|
Active |
| Cable type
|
Optic fiber |
| Typology
|
HDMI® High Speed with Ethernet |
| Speed
|
18Gbps |
| HDCP version
|
2.2 |
Connector A
| Connector Type A |
19-pin HDMI® plug Straight |
Connector B
| Connector Type B
|
19-pin HDMI® plug Straight |
General characteristics
