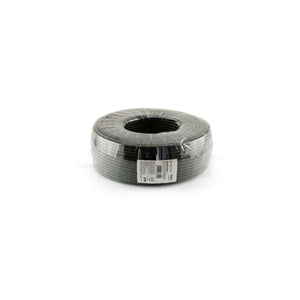

Auris H1Z2Z2-K Series 6mm² Black Photovoltaic Solar Cable
Auris H1Z2Z2-K 6mm² Black Photovoltaic Solar Cable – Reliability and Safety for Photovoltaic Systems
The Auris Series H1Z2Z2-K solar cable is the ideal solution for photovoltaic systems requiring maximum safety, durability, and performance. Designed for connecting solar panels and Class II devices, this 6 mm² photovoltaic cable ensures optimal energy transmission, whether installed fixed or underground, outdoors, or inside conduits.
Performance and Design Features
- Tinned copper conductor : high resistance to corrosion and oxidation.
- Black XLPO sheath : excellent protection against UV rays, atmospheric agents and mechanical stress.
- Compact external diameter (6.4 mm): makes installation easier even in the tightest spaces.
- Insulation class II : enhanced safety for professional systems.
- Small bending radius : easy to handle during installation.
- Standard length 100 m : ideal for connections between multiple solar panel cables .
Technical Specifications
- Conductor section : 6 mm² (84x0.29 mm)
- Material : Tinned copper, black XLPO sheath
- Outer diameter : 6.4 mm
- Operating voltage : 1.0 kV ac / 1.5 kV dc
- Conductor resistance : 3.39 Ω/km at 20°C
- Operating temperature : -40°C to +90°C (up to 200°C in short circuit)
- Certifications : CEI EN 50618, RoHS, Reach, Euroclass Eca (EN50575:2014+A1:2016)
Durability and Safety
- UV and weather resistance : guaranteed for permanent outdoor installation.
- Fire protection : Euroclass Eca classification, compliant with CPR standards.
- Advanced insulation : safety even in extreme environmental conditions.
- Long-term reliability : ideal for professional and residential photovoltaic systems.
Ideal Target
Perfect for photovoltaic installers and system builders seeking a durable, safe, and compliant cable for solar panels . Thanks to its technical features, it is suitable for both residential and industrial projects, facilitating installation and ensuring consistent performance over time.
Conclusion
The 6 mm² Auris Series photovoltaic cable is a reliable choice for those who want to optimize the performance and safety of solar systems. With high-quality materials and recognized certifications, it meets the needs of the most demanding professionals.
Physical characteristics
| Insulation class | II |
|---|---|
| Sheath color | Black |
| External diameter | 6.4 mm |
| Cable formation | 1x6mm² |
| Driver training | 84x0.29mm |
| Sheath | ø6.4mm XLPO |
| Length | 100 m |
| Conductor material | Tinned copper |
| Sheath material | XLPO |
| Min. bending radius | 32 mm |
| Laying traction | 1.5 kg/mm2 |
Electrical characteristics
| Conductor resistance | 3.39 Ohm/Km @20°C |
|---|---|
| Insulation resistance | 500 Ohm/Km @20°C |
| Operating voltage | 1.0 kVac - 1.5 kVdc |
| Test voltage | 6.5 kV ac or 15 kV dc/5 min. |
General characteristics
| Application | For underground or outdoor installation |
|---|---|
| CPR Application | For construction (fixed installation) |
| CPR Class | Eca |
| ETIM Class | EC002928 |
| Brand | AlphaSolar |
| Package Type | Box |
Temperature
| Temperature | -40 / 90 °C |
|---|---|
| Temperature Short Circuit | 200°C/5s |
