Emergency Lamp Battery 3.6V 1600mA 3SC Molex ST4 Connector
📐 3.6V · 1600 mAh · 3× SC in a stick · 131 × 26 mm · Molex ST4 connector with 330 mm cable · Up to 55 °C · 141 g
🔧 Difficulty: 2/5 · 🎯 Ideal for: maintenance technicians, building managers, installers, private individuals
3.6V 1600mAh 3SC replacement battery for emergency lighting

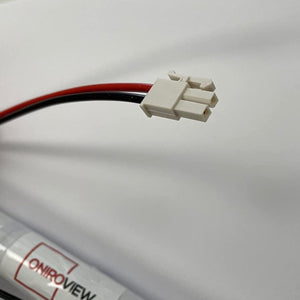

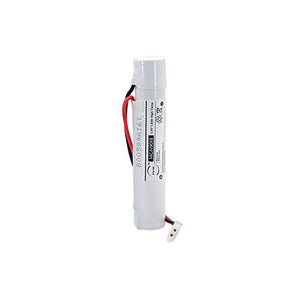

Battery pack rated at 3.6V and 1600 mAh in a 3-cell SC stick format, terminated with a Molex ST4 connector and 330 mm cable. This is a direct replacement for Beghelli, OVA, Relco, and Schneider-Electric emergency lamps that use the short three-cell pack: unplug the old one, plug in the new one—no soldering or tinkering with the device's electronics required.
Technical advantages
- 🌡️ High-temperature cells: withstand the 55 °C reached inside a closed ceiling light, where a standard battery would lose capacity in just a few months
- 🔌 Molex ST4 connector: plug-and-play replacement, minimizing maintenance time
- 🔋 Designed for permanent charging: endures the 80 mA continuous trickle charge required by safety devices
- 📏 Compact 131 mm format: the short pack of the series, for the tightest housings
- 📜 Compliant with IEC61951 and UL924, the benchmark standards for safety lighting
Technical datasheet
| Nominal voltage | 3.6 V |
| Capacity (0.2C - 1.1V/cell) | 1600 mAh |
| Cell format | 3 × SC in a stick |

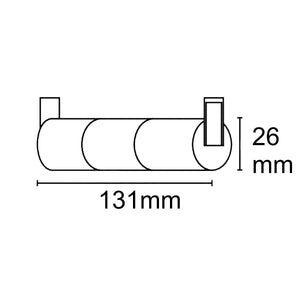

| Dimensions (H × Ø) | 131 × 26 mm |
| Terminals | 330 mm cable + Molex ST4 connector |
| Standard charging current (16 h) | 160 mA |
| Trickle charging current | 80 mA | Operating temperature | Up to 55 °C |
| Weight | 141 g |
| Standards | IEC61951 (Europe) · UL924 (USA) |
| Packaging | Single, 1 pc |
| SKU | OV-08 |
| EAN | 8052461821115 |
Other voltages in the same series
The number of cells determines the voltage and length of the pack. Count the cells on your old battery or measure its length:
| Voltage | Cells | Length |
| 3.6 V — this model | 3 × SC | 131 mm |
| 4.8 V | 4 × SC | 174 mm |
| 6 V | 5 × SC | 216 mm |
Expert Advice
🔍 Expert Advice:
There is a specific reason why a standard rechargeable battery from a hardware store lasts only a few months in an emergency lamp: here, the battery lives permanently on charge, twenty-four hours a day for years, at a maintenance current of 80 mA. This is a regime that standard cells cannot tolerate, and when added to the 50-55 °C reached inside a closed fixture, it destroys them quickly. High-temperature cells were created exactly for this: they don't offer more capacity, they offer the ability to survive those conditions. Upon initial installation, leave the lamp charging for at least 24 consecutive hours before performing any tests: a new pack arrives with a partial storage charge, and a test done immediately will yield disappointing runtime that has nothing to do with product quality. Final tip to avoid returns: measure the length of the old pack before ordering. Three cells equal 131 mm; if yours measures 174 or 216 mm, you need a different voltage, which you can find in the table above.
Frequently Asked Questions
Does it come pre-charged?
It comes with a partial storage charge. It must be installed and left to charge for at least 24 consecutive hours before testing its runtime.
Can I install it in place of an 800 or 1200 mAh battery?
Yes, provided that the voltage and dimensions match. A higher capacity at the same voltage simply results in more runtime reserve.
How often should it be replaced?
Approximately every 4 years, though this depends on the operating temperature. The concrete sign is reduced runtime during periodic testing.
Package Contents
📦 1× 3.6V 1600mAh 3SC battery pack with cable and Molex ST4 connector.
