The world of audio video solutions and distribution has seen, over the years, a massive evolution: from videotapes to DVDs, Blu-rays up to hdmi signals in very high resolution 4K, the leap forward in terms of video quality and functionality has been considerable.
The rapid transition from one technology to another often makes it necessary to replace both video sources and TV monitors.
Oniroview , always in the continuous search for technologically advanced and high quality solutions for the audio-video world, in the distribution of hd signals in situations with a large number of TV monitors to be connected, has the right solution with an excellent quality / price ratio. .

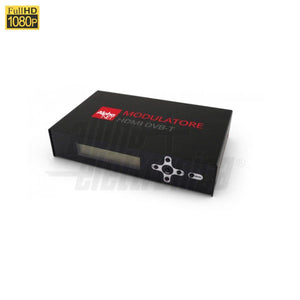

The CT590 modulator allows to distribute the hdmi signal through the normal antenna cable using the digital terrestrial receiver already present in common televisions.

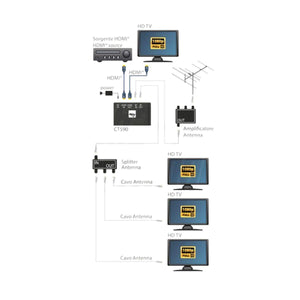

It is the ideal solution in the home or in show rooms to bring an hdmi source to all the antenna sockets in the house. The transmitted signal is in HD quality.
The output can be set to your favorite digital channel and distributed to TVs through a splitter (divider / divider).
In input to the modulator we can connect, via an hdmi cable) a video game console (PS3, xbox), a sat decoder, dvr, nvr, blu-ray players.

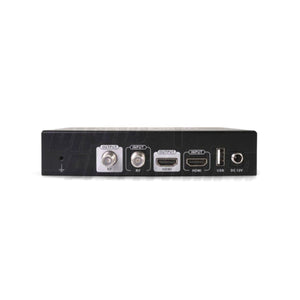

At the output we have an hdmi connection with loop-out function for connecting a local monitor, an input type F RF socket (here we will connect the antenna system output) and the output type F RF output for connection directed towards the internal plant.
The output signal will go directly to the home system and will be divided and brought to all the televisions present.

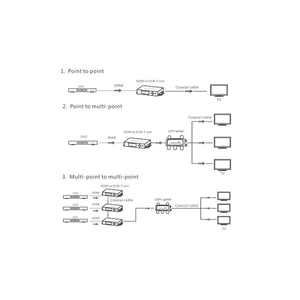

The modulator also allows 3 types of use:
- Point to Point connection
- Point to Multi-point connection
- Multi-point to Multi-point connection
Point to Point Connection: An RF modulated hdmi source to a TV.

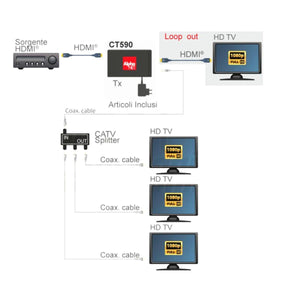

Point to Multi-point connection: One HDMI source modulated in RF to multiple TVs via splitter (not included)
Multi-point to Multi-point connection: Multiple hdmi sources connected to respective modulators connected in series to multiple TVs via splitter (not included)
Specifications
- HDMI DVB-T modulator
- Settable radio channel
- Settable digital channel
- Settable modulation parameters
- Frequency from 100 to 1000MHz
- Bit rate: 31.6MBit
- Video encoding: H264
- Audio encoding: MPEG2
- HDMI 1.3 - HDCP 2.2
- Supported Resolutions:
480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz

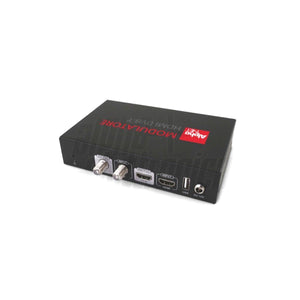

Connections
Transmitter
- HDMI connector (Input)
- HDMI connector (Loopout output)
- Type F connector (RF output)
- Type F connector (RF input)
- USB connector for firmware update
Caution
- Plug and play installation, no drivers or software required
Package contents
1x Modulator
1x 12Vdc 2A power supplies (conn. 5,5-2,1mm central positive)
ENTRANCE
HDMI® | RF
EXIT
RF
