HDMI Extender 4K HDbaseT 120mt 4K IR Bidirectional - Loop out - RS232

sold in the last hours
SKU: CT378/11/1
Vendor: Vendor: Alpha Elettronica
💡 What it is: Professional Transmitter + Receiver HDMI kit using HDBaseT technology for 4K@60Hz resolutions up to 120 meters.
🎯 What it's for: Ultra HD video distribution over long distances without frame loss, with remote control of infrared (IR) and serial (RS232) signals.
👷 Who it's for: Professional installers, system integrators, and designers of conference rooms or high-end Home Cinema systems.

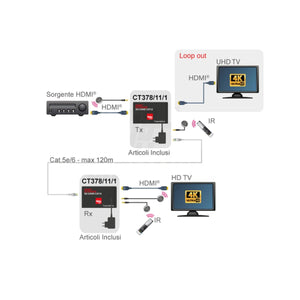

🔧 How to use it: Point-to-point connection via a single Cat.6 or higher cable; supports PoC (single power supply from the transmitter).
✅ Benefits: Zero latency, 18Gbps bandwidth, local loop output on TX, and uncompressed multichannel HD Audio.
Pre-order
Regular price €428.65 Sale price €306.18
29% OFF

Express shipping from 5.90.
Free for orders
over 99 euros.
Shipments to collection points. Details here.

Returns* within 30 days B2C
Money-Back Guarantee
2-year warranty
Quick and easy purchase

Richiesta Fattura: Segui le istruzioni dopo l’acquisto per inviare i tuoi dati.

Guarantee Safe Checkout

Visa
PayPal
Mastercard
Diners Club
Satispay
Klarna
Apple Pay
Maestro
Google Pay
Shop Pay

Pickup available at Sede Operativa Oniroview Usually ready in 24 hours

Pickup available

HDMI Extender 4K HDbaseT 120mt 4K IR Bidirezionale - Loop out - RS232

HDMI Extender 4K HDbaseT 120mt 4K IR Bidirectional - Loop out - RS232

€306.18

Resolution: 4K@60Hz | Technology: HDBaseT 1xCat.6 | Distance: 120 Meters
🔧 Difficulty: 4/5 | 🎯 Ideal for: Professional installers and System Integrators.

Professional 4K Video Distribution Over Long Distances Without Compromise

In installations where reliability is the only acceptable parameter, the CT378/11/1 extender represents the benchmark. Utilizing HDBaseT technology, this device enables the convergence of Ultra HD video, PoC power, bidirectional IR, and RS232 over a single network cable, eliminating the bottlenecks of traditional HDMI systems or IP solutions prone to compression and latency.

Technical Analysis and Advantages

  • 🛡️ HDBaseT 18Gbps Standard: Supports the full HDMI 2.0 standard. Manages 4K@60Hz streams with RGB and YCbCr color space (Deep Color), ensuring absolute color fidelity for 4K Blu-ray sources and professional broadcast signals.
  • 🔌 PoC (Power over Cable) Technology: The entire system requires only one power supply connected to the TX unit. The receiver receives the necessary power directly via the Cat.6 cable, drastically simplifying installation behind monitors or projectors where space is limited.
  • 🔧 HDMI Loop Out & Monitoring: The transmitter integrates a local HDMI output for real-time source monitoring, eliminating the need for external splitters and reducing potential points of failure in the video chain.
  • 🔄 Total Remote Control: Bidirectional management of IR signals and the RS232 serial port allows for complete integration with home automation systems or simple management of sources from the remote station.
  • 🔊 Lossless Multichannel Audio: Full compatibility with LPCM 8ch, Dolby TrueHD, and DTS HD Master Audio at 192 kHz / 24bit, for sound reproduction faithful to the original track.

Technical Specifications

Transmission Technology HDBaseT (Point-to-Point)
Maximum Resolution 4Kx2K @ 60Hz (HDMI 2.0)
Max Distance (Cat.6) 120 Meters
Bandwidth 18 Gbit/s
Control Functions Bidirectional IR, RS232, CEC Bypass


💡 Expert Advice:

In support, we often see HDBaseT extenders that "drop" the signal or don't reach the declared distance. From experience, I can tell you that the secret is in the cable: never use CCA (copper-clad aluminum) cables. To cover 120m in 4K, exclusively install a Cat.6a or Cat.7 S/FTP cable with a pure copper conductor (OFC). Also, remember that HDBaseT is not IP: do not try to connect it to a network switch; the connection must be direct to avoid irreversible damage to the chipsets.

Esperto Oniroview

Quick FAQs

Can I use a Cat.5e cable?
Yes, but the maximum distance and 4K signal stability might be significantly reduced. For professional installations, we always recommend Cat.6 or higher.

What does Bidirectional IR mean?
It means you can control the decoder from the TV (remote) or, conversely, manage the display from the source location using the included IR receivers/transmitters.

Package Contents

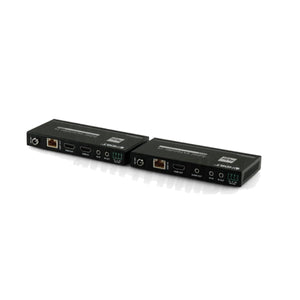

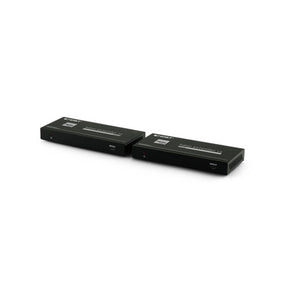

  • 📦 1x HDBaseT Transmitter + 1x Receiver
  • 📦 1x 24Vdc 1A Power Supply (PoC System)
  • 📦 IR cable kit (TX/RX) and RS232 terminal blocks
  • 📦 4x Professional mounting brackets

Warranty & Safety

  • Warranty: 2 years for conformity defects.
  • 📜 Certifications: CE, RoHS, HDBaseT Standard.
  • ⚠️ Safety: For indoor use only. Avoid running data cables parallel to 230V/400V power cables to minimize interference.

Choose the reliability of Oniroview (Catania) for your video infrastructures: specialized technical support and certified reliability.

Specifications
- Pair of plug-and-play modules, TX + RX
- Extension over single Cat.5e/6 IEEE-568B cable
- Signal transmission distance (using Cat.5e/6 cable):
- max 120m (4Kx2K@30/60Hz)

HDMI Specifications
- 4K Blu-ray and HD DVD in Full HD (1080p)
- RGB, YCbCr color space
- Deep Color
- LPCM 8-channel audio, 192 kHz, 24bit
- Dolby TrueHD compatible
- DTS HD Master Audio compatible
- CEC command transmission (CEC Bypass)
- Bandwidth: 18 Gbit/s

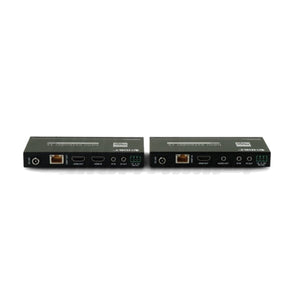

Connections
Transmitter
- HDMI Connector (Input)
- RJ45 Connector
- RS232 Connector
- 3.5 Jack Connector - IR Input
- 3.5 Jack Connector - IR Output

Receiver
- HDMI Connector (Output)
- RJ45 Connector
- RS232 Connector
- 3.5 Jack Connector - Stereo L/R Audio
- 3.5 Jack Connector - IR Input
- 3.5 Jack Connector - IR Output

Package Contents
1x Transmitter
1x Receiver
1x 24Vdc 1A Power Supply (5.5x2.5 conn.)
1x IR Receiver Cables
1x IR Transmitter Cables
2x RS232 Terminal Blocks
4x Mounting Brackets
Extender Distance 120 m
Transmission Technology HDbaseT 1xCat.5e/6
Extender Type HDMI®
Transmission Technology HDbaseT 1xCat.5e/6
Additional Features IR, Loop-Out, RS232
Control Interface IR, RS232
Maximum Resolution 4K @ 60Hz
Type Transmitter+Receiver
Connection Topology 1:1
Receiver Inputs IR, RJ45
Transmitter Inputs HDMI®, IR, 3-pole Terminal Block
Receiver Outputs Analog Audio, HDMI®, IR, 3-pole Terminal Block
Transmitter Outputs HDMI®, IR, RJ45
