Hdmi 1080P 60hz loop-out extender over ethernet cable allow you to increase the maximum distance (up to 50mt ) to transport the high definition video signal (1080p) coming out the door hdmi of a source such as Blu-ray players, computers but above all for sky Q HD decoders to a TV monitor.
Hdmi extenders solve this problem and depending on the model and technology it is possible to distribute hdmi signals to considerable distances.

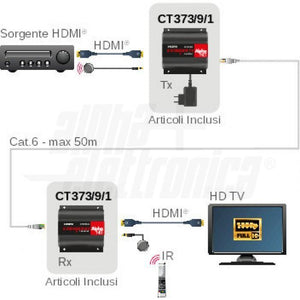

The 1080p extender is suitable for extending the length of HDMI cables using a single Cat.5 / 6 ethernet cable (standard connection IEEE-568B ) and consists of a transmitter unit and a receiver unit.
In this way, transmission up to 50 mt sending a 1080p signal at 30hz without signal degradation, or 30mt with a 1080P signal at 60Hz.
It is the ideal solution for domestic use And show rooms , applications related to security , conference rooms, schools and training environments e video surveillance, health.
The hdmi extender also implements an output hdmi loop-out which allows you to to divide the hdmi signal directly from the transmitter so you can connect a monitor near the video source . In this way it will be possible to extend the signal via cat.6 cable and split the signal without having to resort to other devices making the installation more quick and clean.
The hdmi extender is powered (two power supplies included), this allows the transmitter and receiver to send the amplified and equalized signal to obtain the best performance without signal loss.
The hdmi extender also supports the remote control signal of the remote controller via an infrared receiver and transmitter. This function is very convenient in situations where it is necessary to control the source remotely. The signal is sent on the LAN cable and received by the player (DVD player, satellite decoder, sky etc.)
Specifications

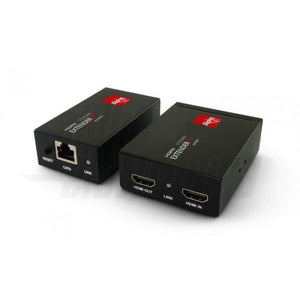

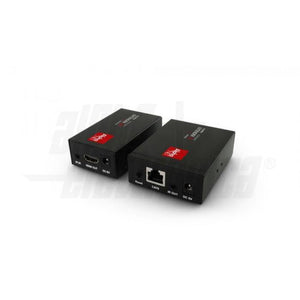

- Pair of plug-and-play modules, TX + RX
- Extension on single Cat.5e / 6 IEEE-568B cable
- Supported Resolutions:
480i @ 60Hz, 480p @ 60Hz, 576i @ 60Hz, 576p @ 60Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 30Hz, 1080p @ 50 / 60Hz

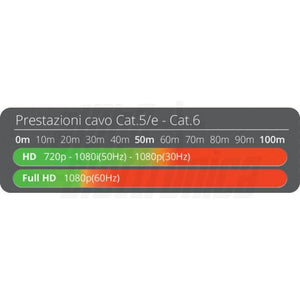

- Signal transmission distance:
- max 50m (480i @ 60Hz, 480p @ 60Hz, 576i @ 60Hz, 576p @ 60Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 30Hz)
- max 30m (1080p @ 60Hz 8bit)
using Cat.5e / Cat.6 AWG24 cable.
- Supports transmission of IR signals, 20-60kHz
- 3D compatible
HDMI specifications
- Bluray and HD DVD in Full HD (1080p)
- Bandwidth up to 10.2Gbps total
Connections

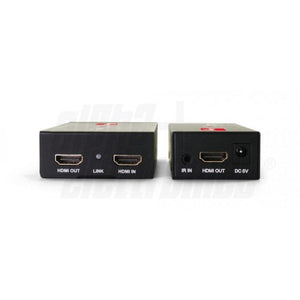

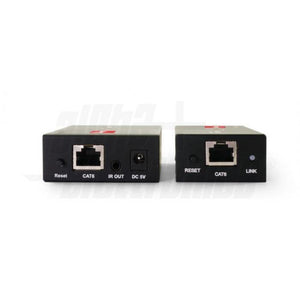

Transmitter
- HDMI connector (Input)
- HDMI connector (Out)
- RJ45 connector
- Jack 3.5 connector - IR output
Receiver
- HDMI connector (Out)
- RJ45 connector
- Jack 3.5 connector - IR input
Caution
- Plug and play installation, no drivers or software required
Package contents
1x Transmitter
1x Receiver
1x Power supplies 5Vdc 1A (conn. 5,5-2,1mm positive center)
1x IR receiver cable
1x IR transmitter cable
Features
| 3D compatible |
yes |
|
Maximum resolution |
1080p @ 60Hz |
| 4K compatible |
no |
|
Technology |
Standard 1xCat. 5e / 6 |
| Distance Extender |
50 m |
|
Extender type |
HDMI® |
| Additional functions |
IR, Loop-Out, PoE |
|
Typology |
Transmitter + Receiver |
| Color depth |
8 bits / channel |
|
|
|
|
|
