Cavo minicoassiale 100mt flessibile 75 ohm + 2 poli alimentazione 2x0,50 + 2 poli brandeggio 2x0,22 per videosorveglianza - Oniroview
Cavo minicoassiale 100mt flessibile 75 ohm + 2 poli alimentazione 2x0,50 + 2 poli brandeggio 2x0,22 per videosorveglianza - Oniroview

Minicoaxial cable 100mt flexible 75 ohm + 2 power supply poles 2x0.50 + 2 tilting poles 2x0.22 for video surveillance

sold in the last hours
Vendor: Alpha Elettronica
SKU: WTR732
Availability : In stock Arriving 7-10 Days Out of stock
€180.00 EUR €152.10 EUR

LIMITED STOCK: ONLY -- ORDER NOW

Trustpilot
Delivery & ReturnAsk a Question
Description

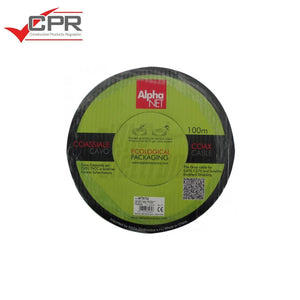

Mini coaxial cable coil from 100mt to 75 ohm impedance + 2 poles 2x0.50 + 2 poles 2 x 0.22 suitable for CCTV, video surveillance systems, terrestrial TV and satellite systems.

The use of coaxial cables with a 75 ohm core in the transmission of video signals (also in HD format) allows to reach considerable distances compared to the new solutions on ethernet cable. In fact, it can carry a video signal for over 300m while keeping the attenuation within acceptable limits in CCTV applications.

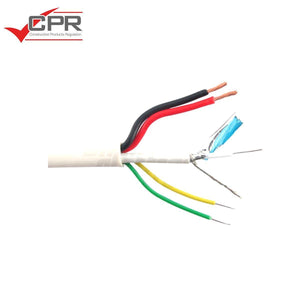

The cable has an external diameter of 6.7 mm , the core is made up of 7 x 0.12 mm pure copper wires, sheathed with PEE insulation and shielded with stranded copper + 72% sheet.
There are also two red and black poles with a section of 2x0.50 to be used as a power supply transport + 2 poles for 2x0.22 pan / tilt to operate motorized cameras and move them horizontally and vertically. In this way it is possible to lay a single cable carrying the video signal and power and control for video surveillance cameras.
Bending radius is min. 30mm, the sheath is white in PVC

The cable is classified with the code CPR according to the new EU directive 305/2011.

The cable is suitable for fixed installations and laying in buildings and civil engineering works where there is a risk of fire.
The cable is classified with the Eca class according to the harmonized technical specification EN50575: 2014 + A1: 2016

Diet

Power conductors color Red-black

Formation of conductors 2x0.75mm²

Physical characteristics

Sheath color White Insulation material for PEE conductors

Coverage 72% Screen material Al

External diameter 6.7 mm Bending radius min. 30 mm

Conductor formation 7 x 0.12mm Shielding Braid + sheet

Conductor material Tinned copper Conductor type Stranded

PVC sheath material

Swing

Data conductors color Yellow - Green

Traverse formation 2x0.22mm²

Electrical characteristics

Characteristic impedance 75 ohms

General features

CPR application For construction (fixed installation) Standard Mini Coax

CPR class Eca Brand AlphaNET
