Cavo Minicoassiale 100mt 3.6mm 75 ohm Schermato per Videosorveglianza TV Sat
Cavo Minicoassiale 100mt 3.6mm 75 ohm Schermato per Videosorveglianza TV Sat

Minicoaxial cable 100mt 3.6mm 75 ohm Shielded for Video surveillance TV Sat

vendute nelle ultime ore
SKU: WTR712
Availability : In stock Arriving 7-10 Days Out of stock
€39.00 EUR €32.20 EUR

SCORTE LIMITATE : SOLO -- ORDINA SUBITO

Descrizione

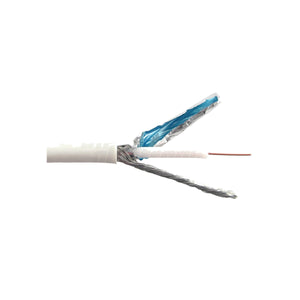

Mini coaxial cable skein from 100mt rigid to 75 ohm impedance suitable for CCTV video surveillance systems, terrestrial TV and satellite systems.

The use of coaxial cables with a 75 ohm core in the transmission of video signals (also in HD format) allows to reach considerable distances compared to the new solutions on ethernet cable. In fact, it can carry a video signal for over 300m while keeping the attenuation within acceptable limits in CCTV applications.

The cable has an external diameter of 3.6 mm, this feature makes it ideal for passing through tight spaces or where it is necessary to lay a cable as thin as possible.

The 3mm diameter makes it almost invisible where the cable has to be hidden or where installation with exposed cable is required.

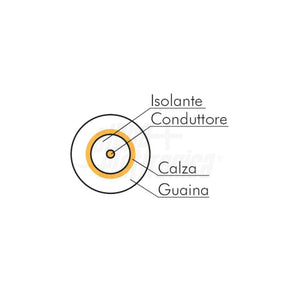

The core is constructed from 1 0.4mm pure copper conductors, the insulating sheath measures 2mm in PEE material. The conductor is shielded with tinned copper with 90% shielding. Radius of curvature 30mm.
The outer sheath is white in PVC.

The cable is classified with the code CPR according to the new EU directive 305/2011.

The cable is suitable for fixed installations and laying in buildings and civil engineering works where there is a risk of fire.

The cable is classified with the Eca class according to the harmonized technical specification EN50575: 2014 + A1: 2016

Physical characteristics

Sheath color White Sheath material PVC
Outer diameter 3.6 mm Conductor insulation material PEE
Conductor insulation diameter 2 mm Min bending radius 30 mm
Conductor training 1 x 0.4mm Shielding Stocking + sheet
Conductor material Pure Copper Conductor type Stiff

Electrical characteristics

Mutual capacity 70 pF / m Propagation speed 72%
Characteristic impedance 75 ohm

General features

CPR application For construction (fixed installation) Standard Mini Coax
CPR class Eca Brand AlphaNET
