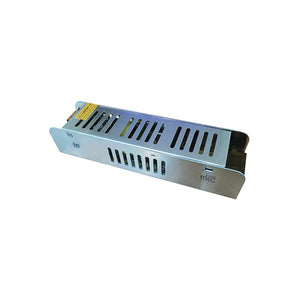

24V 250W 10.5A Metallic Switching Power Supply
📐 24Vdc · 10.5A · 250W · IP20 · Metal housing · Screw terminals · 222×68×40 mm
🔧 Difficulty: 4/5 (230V and DC cable sizing) · 🎯 Ideal for: extensive LED systems, warehouses, multi-camera video surveillance
24V 250W 10.5A metal switching power supply for extensive systems
24Vdc switching power supply, 10.5A / 250W, with IP20 metal casing and screw terminals: the high-capacity size in the range, needed when an LED installation exceeds fifteen meters in length or when multiple low-voltage devices are connected to a single distribution point. 222×68×40 mm body, mountable vertically or horizontally.
Technical advantages
- ⚡ 10.5A available: powers extensive LED systems or multiple parallel branches without needing multiple units
- 🧱 Metal housing: at high power, heat dissipation matters, and metal dissipates via convection much better than plastic
- 🔩 Screw terminals: inspectable connection suitable for generous cable cross-sections
- 🔒 Integrated protections: overload and short-circuit
- 🔄 Dual mounting orientation: vertical or horizontal depending on the panel
Technical data sheet
| Input | 230 Vac 50 Hz |
| Output | 24 Vdc · 10.5 A |
| Rated power | 250 W |
| Protection rating | IP20 — dry indoor environments only |
| Operating temperature | 0 / +40 °C |
| Dimensions | 222 × 68 × 40 mm |
| Standards | EN61347-1 · EN55015 and subsequent |
| Brand | MKC |
| SKU | 530137049 |
| EAN | 8006012361582 |
Cable cross-section on the 24V side
At 24V, the current is ten times that of an equivalent 230V load, so the low-voltage cable cross-section becomes the true constraint of the project. Indicative values to keep the drop within 3%:
| Current on the branch | Up to 3 m | Up to 6 m | Up to 10 m |
| 3 A (72 W) | 1.0 mm² | 1.5 mm² | 2.5 mm² |
| 6 A (144 W) | 1.5 mm² | 2.5 mm² | 4 mm² |
| 10.5 A (250 W) | 2.5 mm² | 4 mm² | 6 mm² |
Expert Advice
🔍 Expert Advice:
At 250W, the nature of the project changes: the critical component is no longer the power supply, but the downstream cables. With 10.5A on a 24V backbone, a 0.75 mm² cable — which is perfectly fine for a 3A run — will heat up and consume half the voltage along the path: the strip at the end remains off and the cable becomes a safety issue. Use the table above and, when in doubt, increase the cross-section. Secondly, regarding the upstream side: switching power supplies of this size have high inrush current at startup, and if you connect two or three on the same line, a curve B miniature circuit breaker may trip without apparent reason every time the lights are turned on. In that case, a curve C breaker is needed. Alternatively, if the system is spread across different rooms, before buying a single 250W unit, consider two smaller units near the loads: shorter cables, cheaper cross-sections, and a fault that doesn't turn everything off.
Package contents
📦 1× MKC 24Vdc 250W metal switching power supply.
Warranty & Safety
✅ 2-year warranty (Legislative Decree 170/2021) · ⚠️ IP20 rating: indoor installation in dry environment only. The 230V connection and the sizing of the protections must be carried out by qualified personnel · 📦 Shipping from Catania within 24 business hours.
