12V 1A IP67 12W Stabilized Waterproof Power Supply for Wired Video Surveillance

sold in the last hours
SKU: KD1915/1000
Vendor: Vendor: Alpha Elettronica
18 in stock
Regular price €11.89 Sale price €8.49
29% OFF
Order within and receive it between and with express courier

Express shipping from 5.90.
Free for orders
over 99 euros.
Shipments to collection points. Details here.

Returns* within 14 days B2C
Money-back guarantee
2-year warranty
Quick and easy purchase

Richiesta Fattura: Segui le istruzioni dopo l’acquisto per inviare i tuoi dati.

Secure Checkout

Visa
PayPal
Generic
Diners Club
Satispay
Klarna
Apple Pay
Maestro
Google Pay
Shop Pay

Pickup available at Sede Operativa Oniroview Usually ready in 24 hours

Pickup available

Alimentatore 12V 1A IP67 12W Stabilizzato Impermeabile per Videosorveglianza Cablato

12V 1A IP67 12W Stabilized Waterproof Power Supply for Wired Video Surveillance

€8.49

📐 12Vdc · 1000 mA · 12W · IP67 · Class II · With PFC · 5.5×2.1 mm center positive jack · 0.5+0.5 m cables · 47.5×50×25 mm
🔧 Difficulty: 3/5 (230V connection) · 🎯 Ideal for: video surveillance cameras, flush-mounting in 503 boxes

12V 1A 12W IP67 waterproof power supply for video surveillance, for 503 boxes

12Vdc 1000 mA switching power supply with IP67 waterproof body and fixed 5.5 × 2.1 mm center positive jack connector. Its compact dimensions — 47.5 × 50 × 25 mm — allow it to be housed inside a standard 503 flush-mounting box, bringing 12V power to the camera without visible power adapters or additional outlets. Integrated 0.5 m cables for both input and output.

Technical advantages

  • 💧 IP67 rating: resin-encapsulated and sealed body against dust and moisture
  • 📏 47.5 × 50 × 25 mm: fits into a standard 503 box along with the wiring
  • 🔋 Power Factor Correction (PFC): a rare feature for this size, reduces current drawn from the line
  • 📉 200 mV ripple and 3-5% regulation: stable power supply, important because interference on the power line is visible in the image
  • 🛡️ Insulation class II: double insulation, no protective conductor required
  • 🔒 Three protections: overload, overvoltage, and short circuit
  • 🌐 Universal 100-240 Vac input

Technical datasheet

Input 230 Vac (100-240 Vac) · 50/60 Hz · tolerance -10% / +6%
Output 12 Vdc · 1000 mA · constant voltage (CV)
Power 12 W
Ripple 200 mV
Load / line regulation 5% / 3%
Power factor correction With PFC
Protections Overload, overvoltage, short circuit
Protection rating IP67
Insulation class II
Construction Desktop — suitable for 503 box

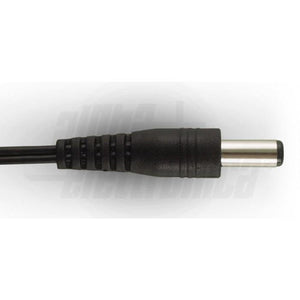

Connector Fixed, 5.5 × 2.1 mm jack · center positive
Input / output cable Integrated 0.5 m / 0.5 m

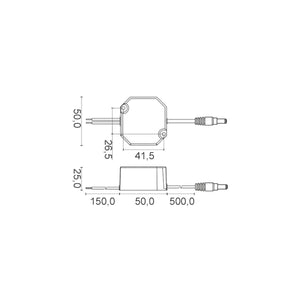

Dimensions (L×W×H) 47.5 × 50.0 × 25.0 mm
Material / color Plastic · black
Cooling Passive
Operating temperature -10 / +30 °C
ETIM class EC001781
Country of origin China
Brand Join (Alpha Elettronica)
SKU KD1915/1000
EAN 8017443693043

Expert Advice

🔍 Expert Advice:

The data to carefully check before wall-mounting is the maximum operating temperature: 30 °C, which is lower than average for this category. Inside a 503 box closed by a blank cover plate, on a wall that gets sun in the summer, those thirty degrees are easily exceeded — and the very resin that ensures the IP67 rating prevents heat from escaping. Choose an internal or at least unexposed wall and, if you can, a low position. Second point on sizing: 1 ampere is the maximum, and an outdoor camera with infrared illuminators turned on at night consumes more than it declares during the day. Check the peak consumption on the camera's datasheet: if it exceeds 700-800 mA, upgrade to a 2A model. An image that disappears late at night and returns in the morning is almost always due to this. Final check: the connector is 5.5 × 2.1 mm center positive. If your camera requires a 2.5 mm pin, the jack will be loose and cause intermittent contact.

Oniroview Expert

Package contents

📦 1× Join 12Vdc 12W IP67 switching power supply, wired with 5.5 × 2.1 mm jack.

Warranty & Safety

✅ 2-year warranty D.Lgs. 170/2021 · ⚠️ Connection to the 230V circuit must be performed by qualified personnel with the system disconnected. The 503 box housing it must be dedicated and accessible · 📦 Shipping from Catania within 24 working hours.
