Minicoaxial cable 100mt flexible 75 ohm + 2 poles 2x0,50 power supply for video surveillance

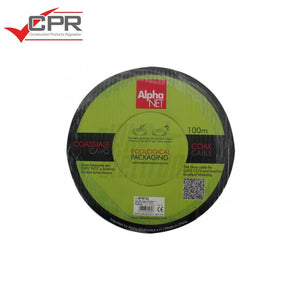

Mini coaxial cable coil from 100mt to 75 ohm impedance + 2 poles 2x0,50 suitable for CCTV video surveillance systems, terrestrial TV and satellite systems.
The use of coaxial cables with a 75 ohm core in the transmission of video signals (also in HD format) allows to reach considerable distances compared to the new solutions on ethernet cable. In fact, it can carry a video signal for over 300m while keeping the attenuation within acceptable limits in CCTV applications.

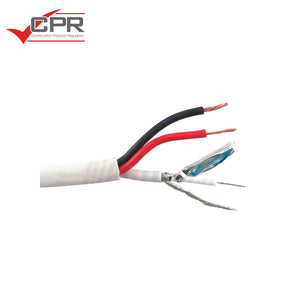

The cable has an external diameter of 6.5 mm, the core is made up of 7 x 0.12 mm pure copper wires, sheathed with PEE insulation and shielded with stranded copper + 72% sheet.
There are also two red and black poles with a section of 2x0.50 to be used as a power supply transport. In this way it is possible to lay a single cable carrying the video signal and power supply for video surveillance cameras.
Bending radius is min. 30mm, the sheath is white in PVC
The cable is classified with the code CPR according to the new EU directive 305/2011.
The cable is suitable for fixed installations and laying in buildings and civil engineering works where there is a risk of fire.
The cable is classified with the Eca class according to the harmonized technical specification EN50575: 2014 + A1: 2016
Diet
Power conductors color Red-black
Formation of conductors 2x0.5mm²
Physical characteristics
Sheath color White Insulation material for PEE conductors
Coverage 72% Screen material Al
Outside diameter 6.5 mm Min. Bending radius 30 mm
Conductor formation 7 x 0.12mm Shielding Braid + sheet
Conductor material Tinned copper Conductor type Stranded
PVC sheath material
Electrical characteristics
Characteristic impedance 75 ohms
General features
CPR application For construction (fixed installation) Standard Mini Coax
CPR class Eca Brand AlphaNET
